Applications :

• Multicore power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

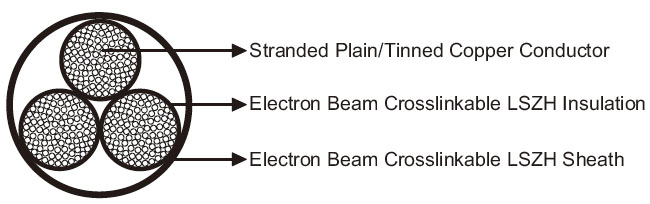

Construction :

• Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Insulation : Electron beam crosslinkable thin wall LSZH compound.
• Outer Sheath : Electron beam crosslinkable LSZH compound.

Optional :

• FRA-TW-0.75M-OS (Screened)
• FRA-TW-0.75M-FR (Fire resistant)

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	AWG	20	18	16	14	12	10
  Maximum Conductor Resistance	Ω/km	28.3	17.9	14.1	8.3	6.8	3.6
  Voltage Rating	KV	0.45/0.75

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No. x AWG	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-TW-0.75M-2C20A	2×20	19/0.2	0.18	4.2	32
FRA-TW-0.75M-2C18A	2×18	19/0.25	0.18	4.6	39
FRA-TW-0.75M-2C16A	2×16	19/0.3	0.18	5.3	54
FRA-TW-0.75M-2C14A	2×14	37/0.25	0.22	6.1	66
FRA-TW-0.75M-2C12A	2×12	37/0.3	0.28	7.3	92
FRA-TW-0.75M-3C20A	3×20	19/0.2	0.18	4.4	46
FRA-TW-0.75M-3C18A	3×18	19/0.25	0.18	4.95	62
FRA-TW-0.75M-4C20A	4×20	19/0.2	0.18	4.65	59
FRA-TW-0.75M-4C18A	4×18	19/0.25	0.18	5.2	80
FRA-TW-0.75M-4C16A	4×16	19/0.3	0.18	6.0	104









Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
